STANDARD C58 2-m-All-Mode-TRANSCEIVER
- zahlreiche Unterlagen
Tragetasche CLC-8
Linearer HF-Verstärker CPB-58
externer Lautsprecher C-207-M
50 Hz every 30 minutes
2. UM·3 dry cell x 9 plus dummy cell
SSB and CW: 4.2 kHz

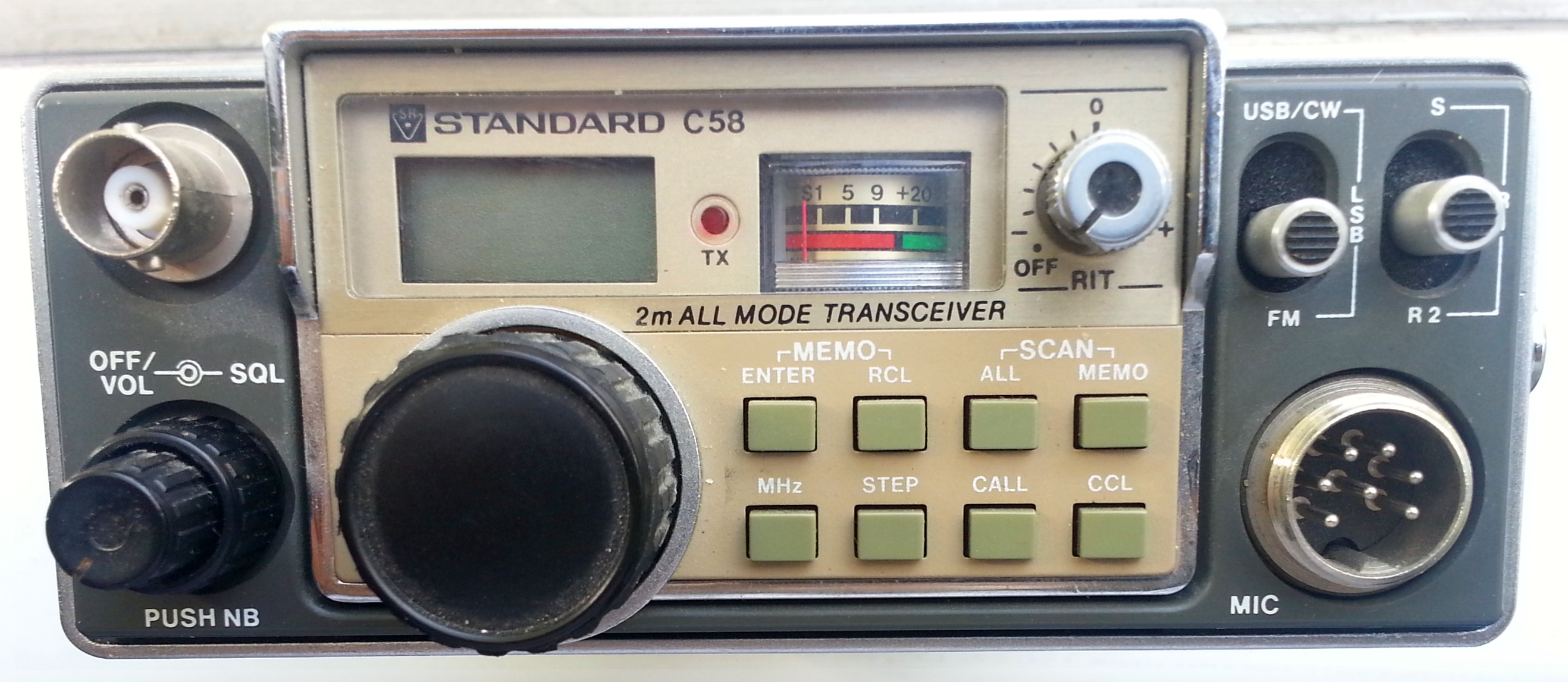

STANDARD C58 2-m-All-Mode-TRANSCEIVER |
|||
| [17.10.2012, mkn] | |||
|
|
|||
| STANDARD Communications Corp. Japan | |||
| STANDARD VHF linear amplifier CPB58 | |||
| Lieferumfang | |||
| Transceiver | |||
| Antenne | |||
| Handmikrofon MP-716 | MP-716 | Schaltbild | |
| User Manual | |||
| Tragegurt | |||
| STANDARD C-58 |
Klassiker-Funkgeräte der Marke STANDARD - zahlreiche Unterlagen |
by ELKOBA | |
| User Manual ---> |
Bedienungsanleitung-STANDARD-C-58.pdf |
by ELKOBA | |
|
Schematic-STANDARD-C-58.pdf |
|||
| Optionales Zubebör | |||
| Mobilhalterung CMB-8 Tragetasche CLC-8 Linearer HF-Verstärker CPB-58 externer Lautsprecher C-207-M |
|||
| Technische Daten | SPECIFICATIONS | Source: STANDARD User Manual, p. 69 | |
| 1. | General Specifications | ||
| Frequency | 144.000 - 147.999 MHz lE) | ||
| 144.000 ... 145.999 MHz (W) | |||
| Type of emission | FM (F3), SSB (A3J). CW (A1) | ||
| Frequency stability (room temperature) | ±300 Hz wthin 1 - 60 minutes after power on 50 Hz every 30 minutes |
||
| Power supply | |||
| External: | 13.8 V DC | ||
| Internal: | 1. UN·3 Ni-Cad battery x 10 2. UM·3 dry cell x 9 plus dummy cell |
||
| Operating supply voltage range | 9.6-16 V DC | ||
| Power consumption | |||
| FM reception standby: | 90 mA | ||
| Non-signal SSB and CW: | 90 mA | ||
| Transmission: | 600 mA (al.1 W into 50 Ohm load) | ||
| Memory back up: | 40 µA | ||
| Microphone input impedance | 600 Ohm | ||
| Antenna impedance | 50 Ohm | ||
| AF output impedance | 8 Ohm | ||
| Grounding system | Negative | ||
| DImensions | 129 (W) x 52 (H) x 190.5 (D) mm | ||
| Weight | 1 25 kg (1.45 kg including batteries) | ||
| 2. | Reception Specifications | ||
| Reception system | FM: Double super heterodyne | ||
| SSB and CW: Single super heterodyne | |||
| Intermediate frequency | |||
| FM: 1st IF 10.7MHz, 2nd IF 455 kHz | |||
| SSB and CW: 10.7 MHz | |||
| Sensitivity | FM; -6 dB (20 dB QS) -8 dB (12 dB SINAD) | ||
| SSB and CW: -10 dB (10 dB S/N) | |||
| Selectivity (-60 dB) | FM: 25 kHz SSB and CW: 4.2 kHz |
||
| Squelch sensitivity | -14 dB | ||
| AF output | More then 1 W (into 8 Ohms with 10% THD) | ||
| Load impedance | 8 Ω | ||
| 3. | Transmission Specifications | ||
| Power output | 1 W | ||
| Modulation | FM: Reactance modulation | ||
| SSB: Balanced modulation | |||
| Maximum frequency tolerance | ±10 x 10-6 (-10...50°C) | ||
| Spurious attenuation | 60 dB | ||
| Carrier suppression | 40 dB | ||
| Undesired side band suppression | 40 dB | ||
| Maximum deviation | +/- 5 kHz | ||
| These specifications are subject to change without notice in the event of Improvements. | |||
| Modification | |||
| Frequenzbereich | 144 - 148 MHz | ||
| Kanal-Raster | 12,5 Khz | ||
| Standard C58 Mod - Ext Ptt PTT MOD by M0ELS | UK MICROWAVE GROUP | ||
| CTCSS-Encoder | CTCSS-Encoder zum Nachrüsten, ausverkauft - ELKOBA | ||
| - dokumentation_CTCSS-nachruesten2-0 (elkoba.com) | |||
| Mikrofon-Verbinder | 7 polig | ||
| Kupplung | M 607 Reichelt, Stecker, Einbaustecker | ||
| VHF linear amplifier CPB58 | |||
| Alternative PA | ALINCO |
